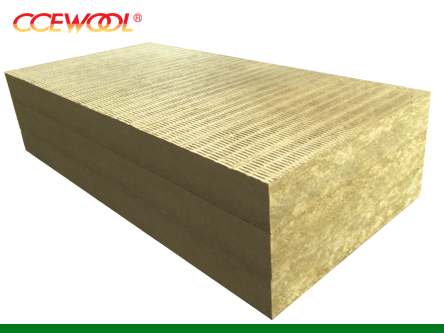

CCCEWOOL® stone wool board used basalt and other natural crystal as main material, through high temperature melt into fibers and then adding binders, then curing and made.
CCEWOOL® stone wool boards feature a certain of strength, excellent thermal stability and chemical stability, outstanding sound absorption, heat preservation and other properties. Its fireproofing performance conforms to A1 grade. Water repellent type and low chlorine type of products can be manufactured according to the requirement of customers. Aluminum foil, fiberglass cloth, and other veneer materials can also be overlaid to the surface of products.
CCEWOOL® industrial insulation stone wool is widely used in nuclear power plants, power plants, chemical plants, refineries, pulp mills, steel mills and other industry fields, such as various process pipelines, industrial equipment, boilers, and storage tanks. It cuts down on heat loss in production, increases production efficiency, ensures process stability, provides safety protection, and reduces noise.
The features of CCEWOOL® industrial insulation stone wool include: high temperature resistance, excellent water repellency, high corrosion resistance, and low thermal conductivity. It can provide the highest level of protection for boilers, furnaces, distillation towers, valves and pipelines in petrochemical, power plants and other industrial production from heat and energy loss, fire, noise and other harmful effects.
CCEWOOL® industrial insulation stone wool meets both domestic and international standards, such as GB11835, GB50264, DL/T5072, SH3010, ASTM C612 and JIS A9504; thereby, it satisfies all the requirements in performance tests.
CCEWOOL® Stone Wool Board |
|||||||
Performance |
Unit |
Density(kg/m3) |
Test Standards |
||||
Thermal conductivity (average 25°C) |
W/(m.k) |
60 |
80 |
100 |
120 |
180 |
|
≤0.040 |
≤0.038 |
≤0.038 |
≤0.038 |
≤0.038 |
GB/T10295 |
||
Combustion performance |
-- |
Class A1 non-combustion |
GB8624 |
||||
Hydrophobicity |
% |
≥99 |
≥99 |
≥99 |
≥99 |
≥99 |
GB/T10299 |
Maximum operating temperature |
℃ |
550 |
650 |
750 |
750 |
750 |
GB/T17430 |
Recommended operating temperature |
℃ |
450 |
550 |
650 |
650 |
650 |
GB50264 |
Heat load shrinkage temperature |
℃ |
500 |
650 |
650 |
650 |
650 |
GB/T11835 |
Linear shrinkage |
% |
≤2 |
≤2 |
≤2 |
≤2 |
≤2 |
ASTM C356 |
Corrosiveness |
-- |
No corrosion |
ASTM C665 |
